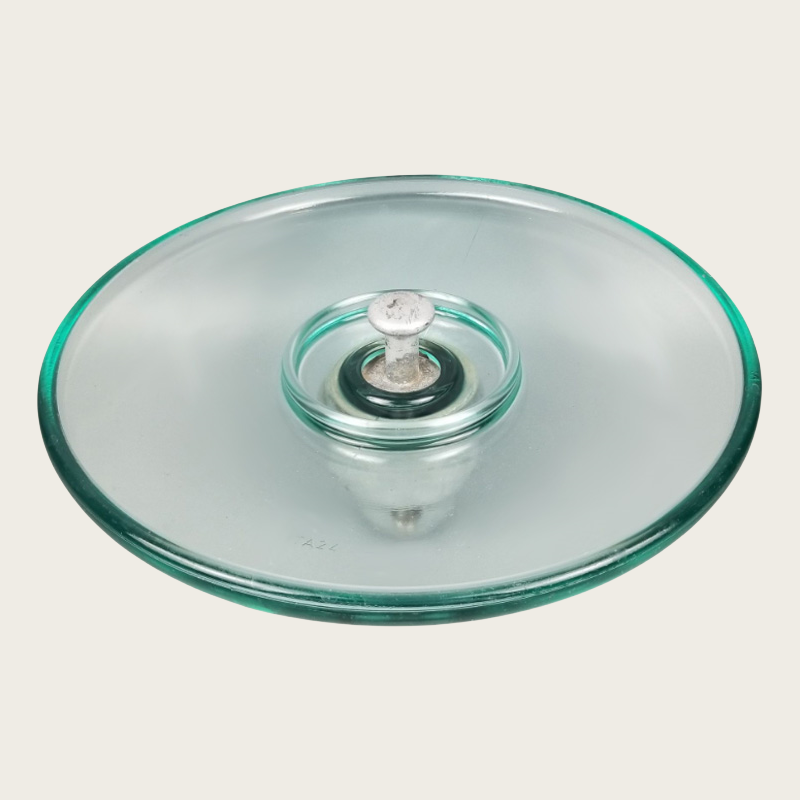

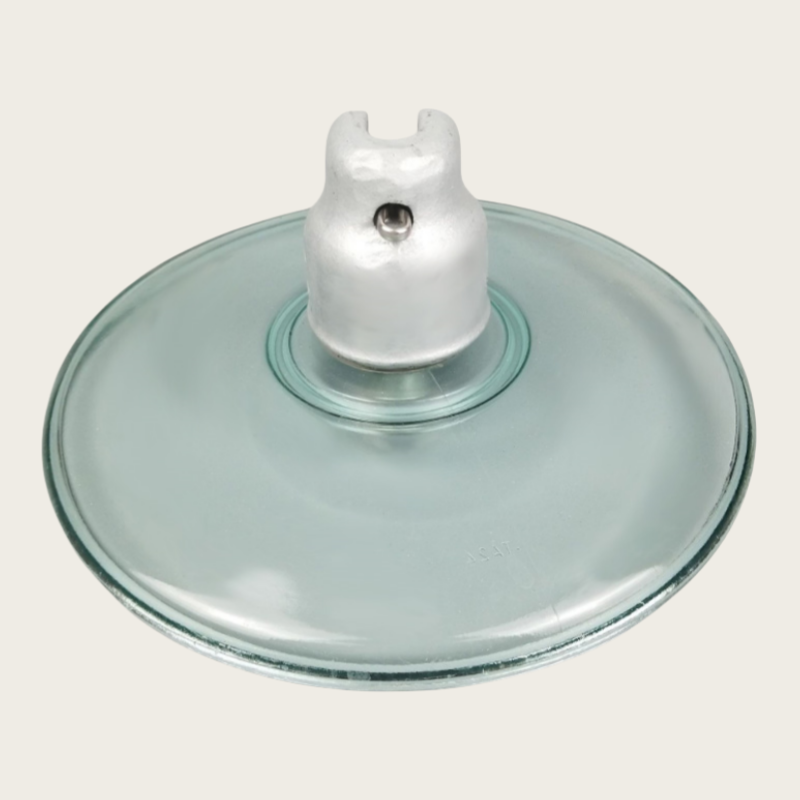

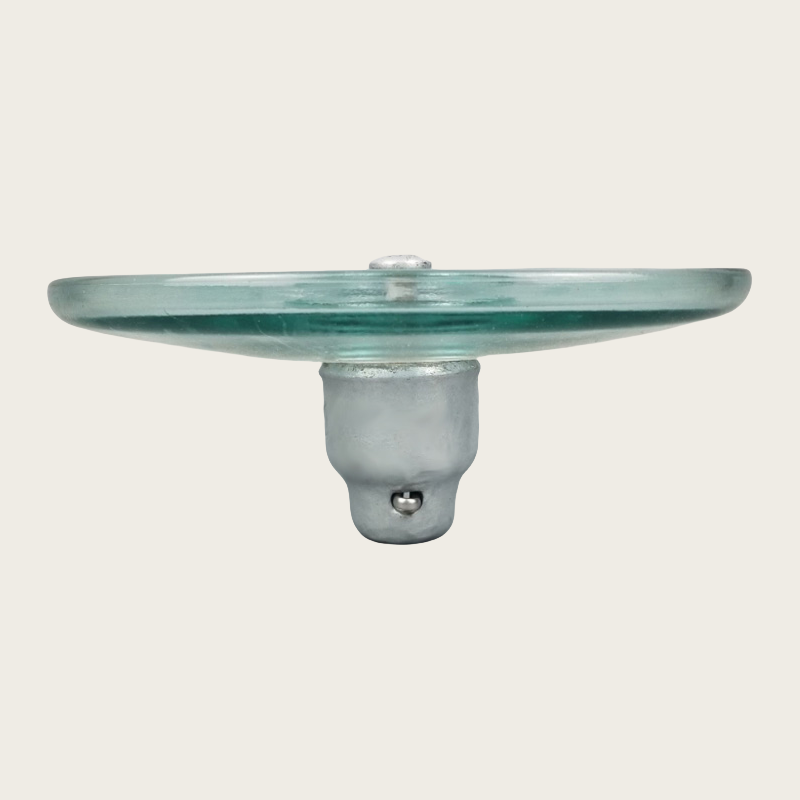

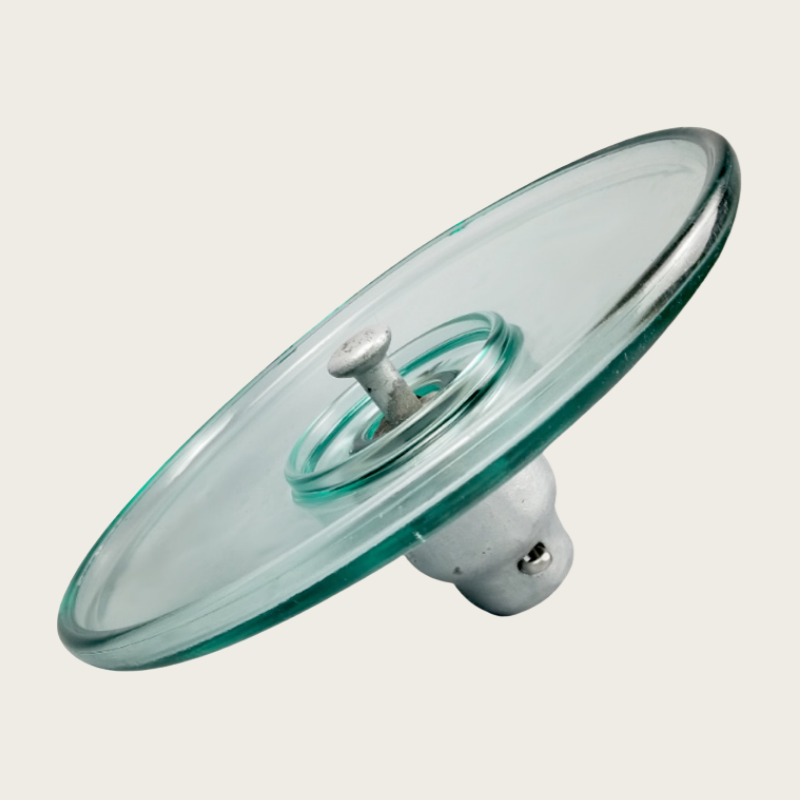

Aerodynamic glass insulator

Aerodynamic glass insulator description

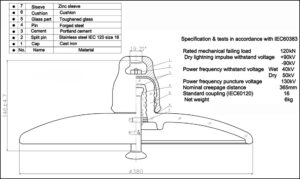

Specification & tests in accordance with IEC60383

Rated mechanical failing load:  120KN

Dry lightning impulse withstand voltage: 90KV

Power frequency withstand voltage Wet:  40KV

Power frequency withstand voltage Dry:  50KV

Power frequency puncture voltage: 130KV

Nominal creepage distance: 365mm

Net weight:  6kg

high voltage Aerodynamic type glass suspension insulator string
Domestic designation		XYAY-70	XYAY-100	XYAY1-120	XYAY-120
D  Diameter D	mm	380	380	380	380
H  Spacing H	mm	146	127	127	146
Creepage  L	mm	365	365	365	365
Ball and socket coupling	mm	16	16	16	16
Minimum mechanical failing load	kn	70	70	70	70
Tension Strength	kv	35	35	35	35
Power-frequency Wet	kv	45	45	45	45
Lighting impulse withstands voltage	kv	90	90	90	90
Impul puncture voltage	kv	2.8	2.8	2.8	2.8
Power frequency puncture voltage	kv	130	130	130	130
Radioinfluence voltage	μv	50	50	50	50
Electric iron visual test	kv	18/22	18/22	18/22	18/22
Power frequency electric arc voltage	ka	0.12S/20kA	0.12S/20kA	0.12S/20kA	0.12S/20kA
Net weight	kg	5.3	5.2	5.3	5

Competitive Advantage:

we offer 1 year quality guarantee period. it is a safe product for end users.

The type of Transformer Bushing is at a very competitive price.

we have cooperated with the most famous transformer factories in European countries due to their reliable quality.

because there are several hundreds of different transformer bushing insulator types including DIN, BS, and AU standards, we have supplied most of those types, so we have good experience in manufacturing.

you can easily get your product in a very short time.

by the way, OEM products are specially offered
