22kv High Voltage Alp22450 Pin Type Porcelain Insulators
Send Inquiry
ELECTRICAL PROPERTIESImpulse Withstand (kVp):150
Wet Power Frequency Withstand (kV):50
Power Frequency Puncture (kV):130
Creepage(mm):450
Dry Arcing Distance (mm):210
Cantilever Strength (kN):11
Height (mm):203
Shed Diameter (mm):160
No Sheds: 4
Colour:Grey
Tolerance of thimble (vertical shaft insert ): +/-3°

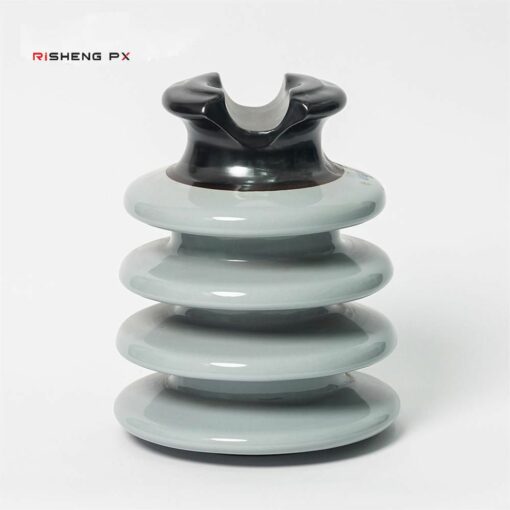

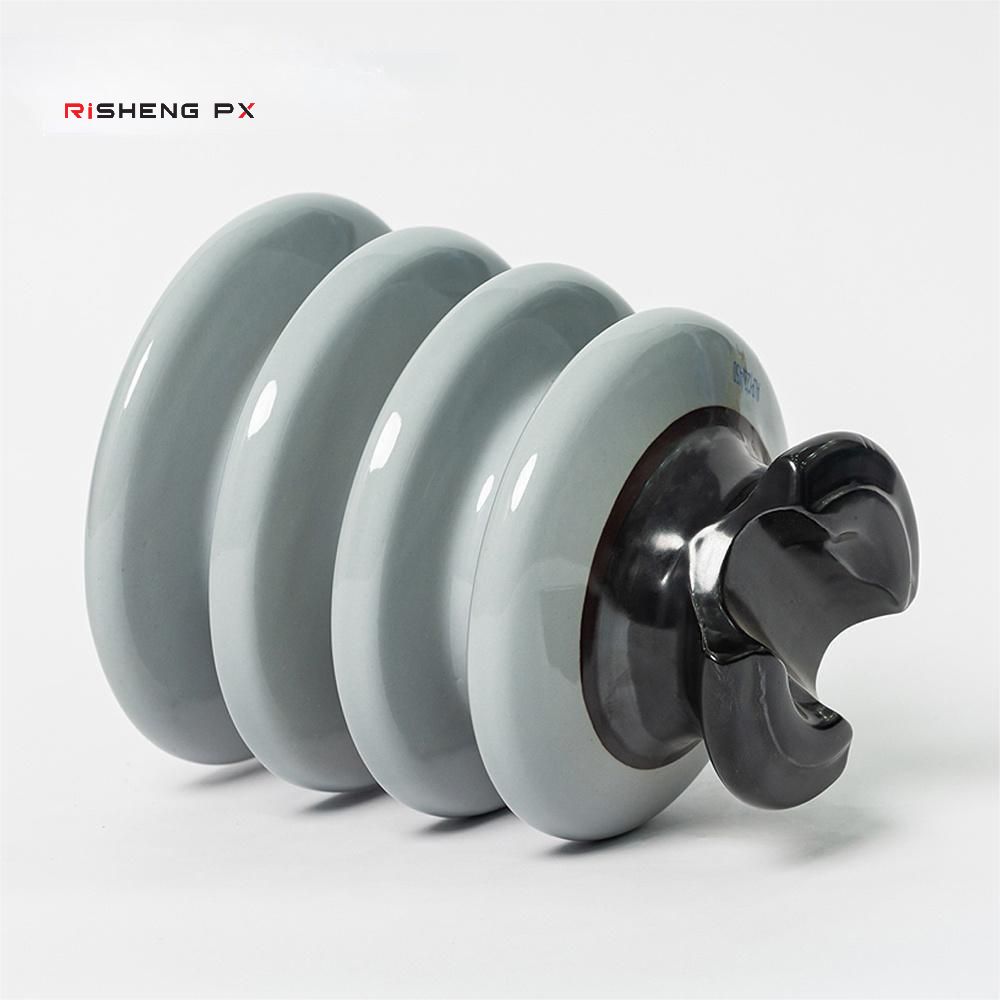

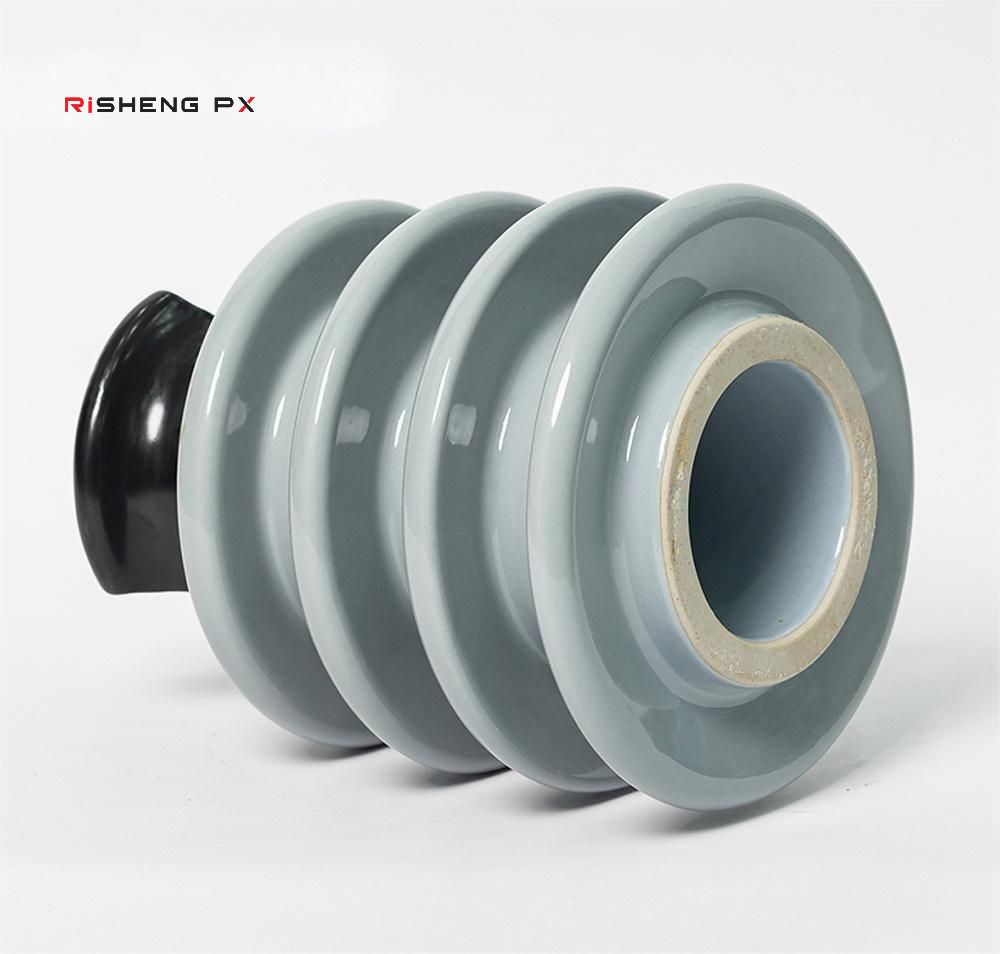

22kv High Voltage Alp22450 Pin Type Porcelain Insulators
| 22kv pin type ceramic insulator ALP22-450 | ||

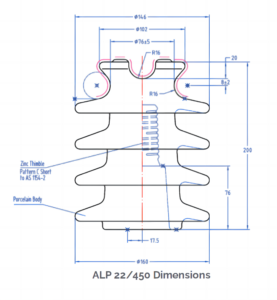

| MAIN DIMENSIONS AND STANDARD PARTICULAR | ||
| Type | ALP22-450 | |
| Diameter | mm | 200 |
| Height | mm | 160 |
| Creepage Distance | mm | 450 |
| Lighting Impulse Withstand Voltage | kV | 150 |
| Wet Power Frequency Withstand Voltage | kV | 50 |
| Miunimum Bending Failing Load | kN | 11 |
| Weight | kg | 3.5 |
| Recom Mended Pin Type | C/200/11 | |
| Designation | 450A11 | |
