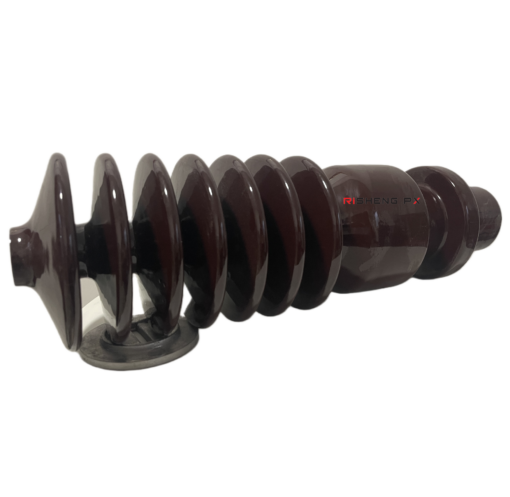

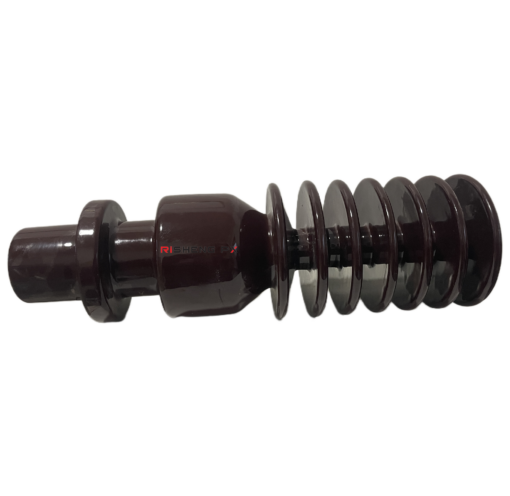

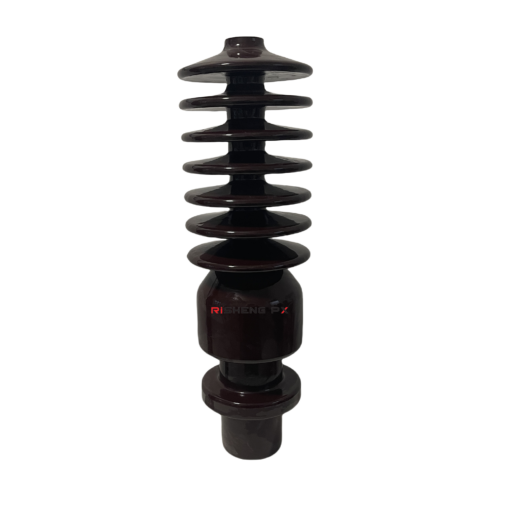

24KV Porcelain Bushing Transformer Bushing

24KV Porcelain Bushing Transformer Bushing Description

Height: 453mm

Dia: 137mm

Rated Voltage: 24KV

Weight: 8KG

Power Frequency Voltage Wet: 60KV

BIL: 150KV

In the power system, a transformer is a crucial piece of equipment, it can realize the conversion and transmission of electric energy. The transformer insulator is an important part of the transformer, its role and importance can not be ignored. This paper will introduce the functions, types, and importance of transformer bushing.

Tag: Know more about Transformer Bushing

Applications:

The 24KV Porcelain Bushing Transformer Bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.

Competitive Advantages:

1. The lower end of the bushing is protected by a porcelain shell which makes the bushing sturdy and prevents the permeation from impurities and moisture.

2. Maintain composure and patience in the face of difficult situations of clients.

3. Training on introducing equipment is offered according to the client’s demand.

4. Build up long-term and stable partnerships, and constantly provide high-quality products.

5. Equipment is guaranteed for up to one year and an overall after-sales service is provided.
