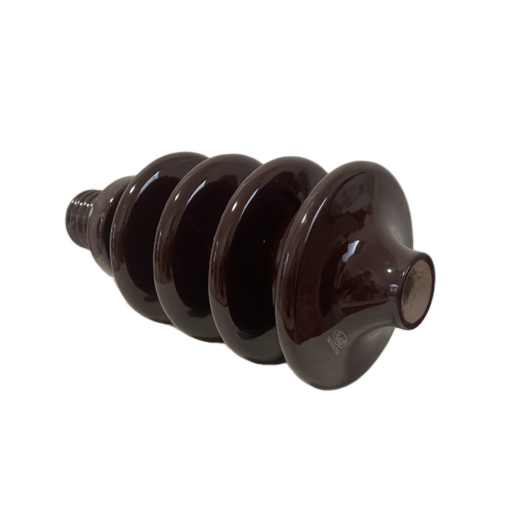

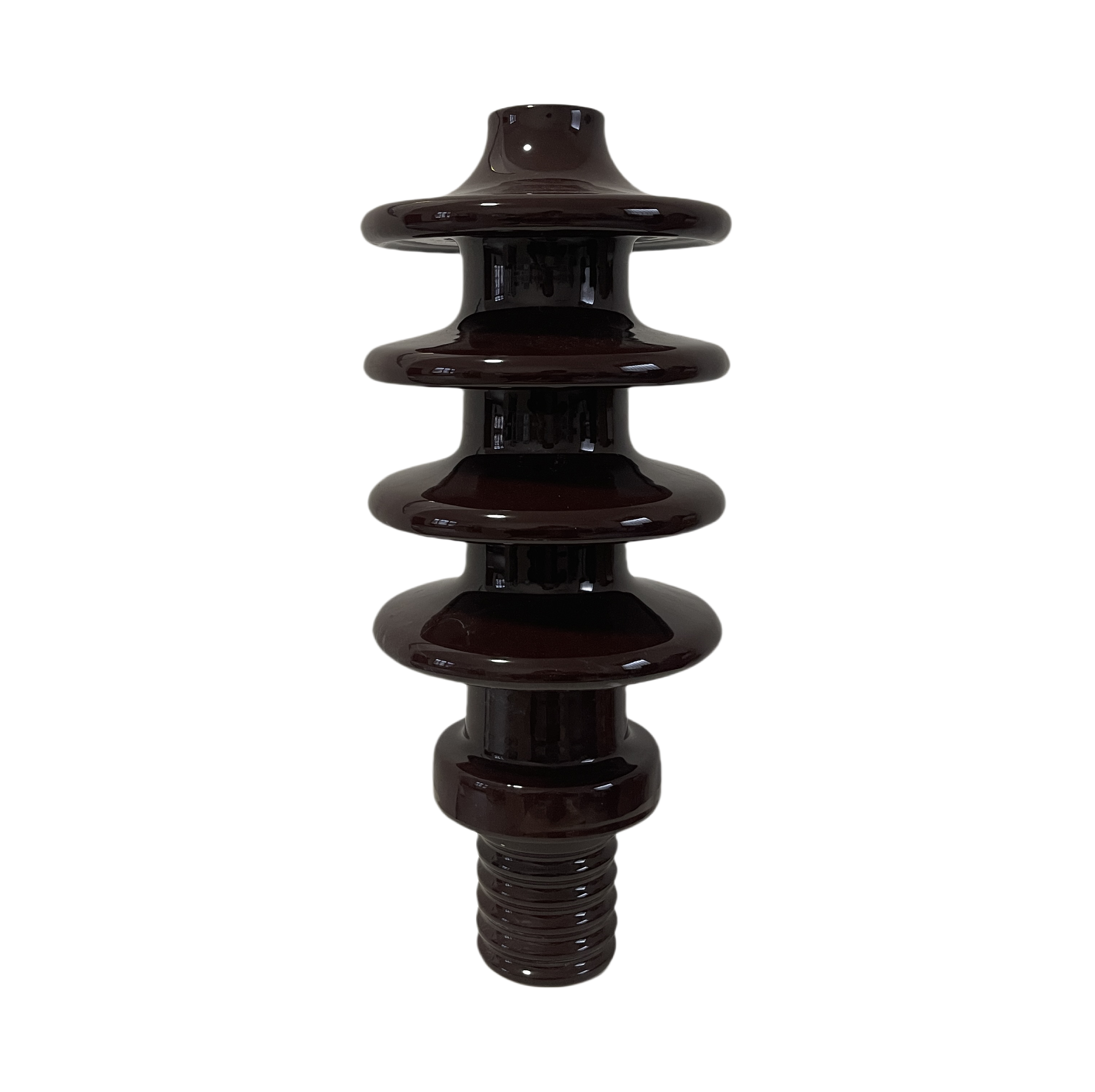

DIN 24KV630A Transformer Bushing Insulators CD 525

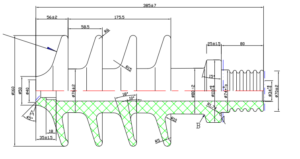

DIN 24KV630A Transformer Bushing Insulators Electric Porcelain Insulators Description:

Height: 385mm

Diameter: 160mm

Rated Voltage/Currency: 24KV/630A

Creepage Distance: 525mm

BIL: 125KV

Dry Power Frequency Wet Voltage: 50KV

Weight: 6.8KG

Applications:

In a high-voltage power system, a high-voltage power transformer insulator is a crucial component. Their main function is to provide mechanical support, insulation, and protection to ensure the safe and stable operation of the power system.

First, the role of high-voltage power transformer insulator

Mechanical support: High-voltage power transformer insulators can withstand the weight and tension of the transmission line to provide the necessary support for the transmission line.

Insulation: Insulators can effectively isolate the conductors of transmission lines and substations, prevent current backflow or leakage, and ensure the safe operation of the power system.

Protection: Insulators can also withstand the interference of external factors such as lightning, and pollution, and protect transmission lines and substation equipment from damage.

Competitive Advantages:

1. The lower end of the bushing is protected by a porcelain shell which makes the bushing sturdy and prevents the permeation from impurities and moisture.

2. Maintain composure and patience in the face of difficult situations of clients.

3. Training on introducing equipment is offered according to the client’s demand.

4. Build up long-term and stable partnerships, and constantly provide high-quality products.

5. Equipment is guaranteed for up to one year and an overall after-sales service is provided.
