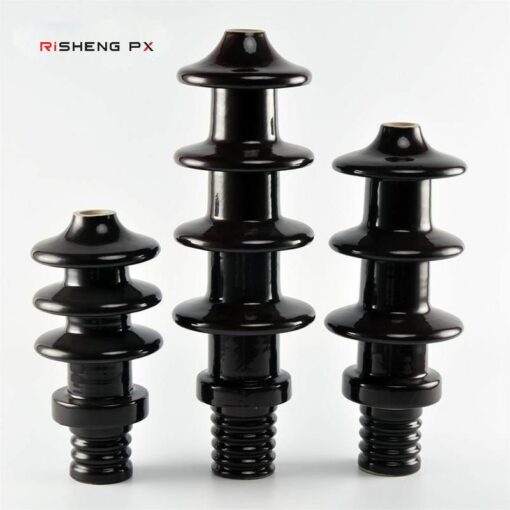

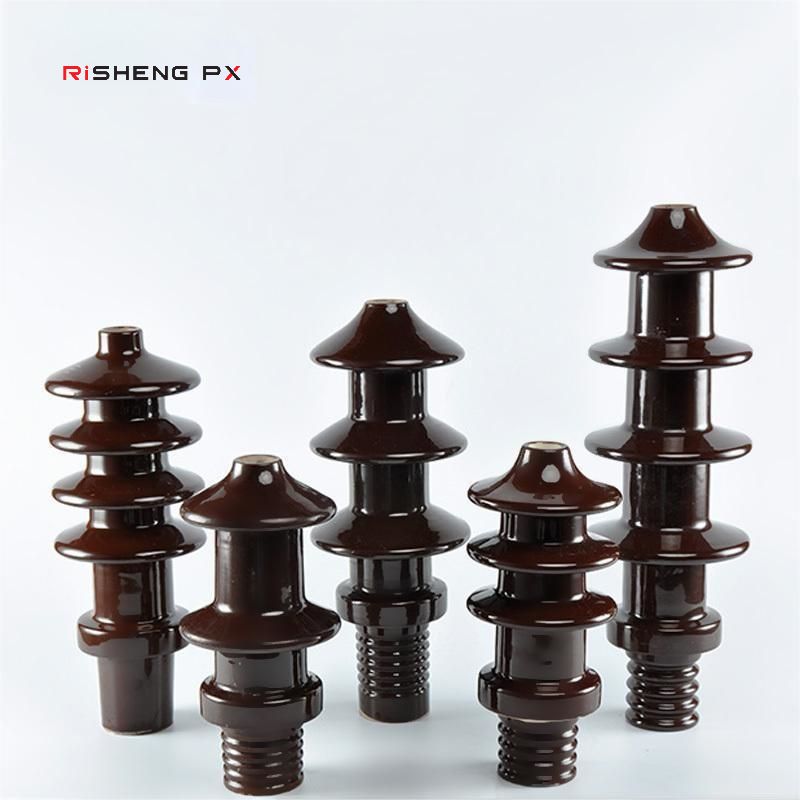

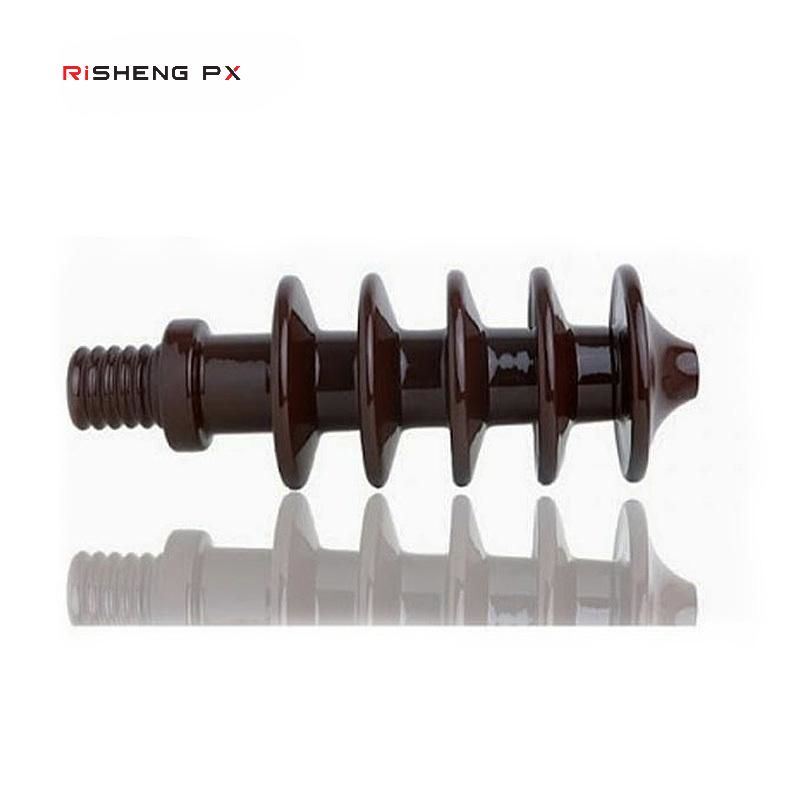

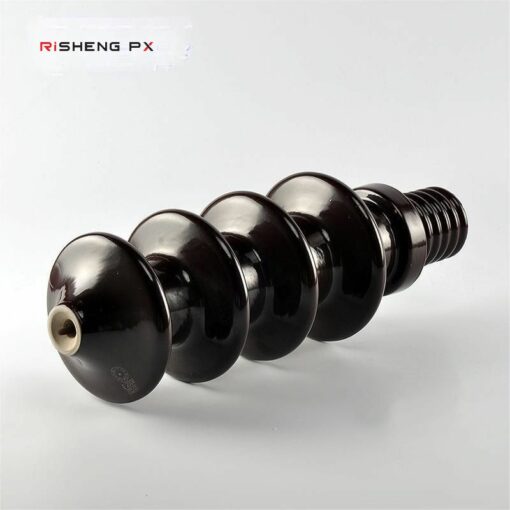

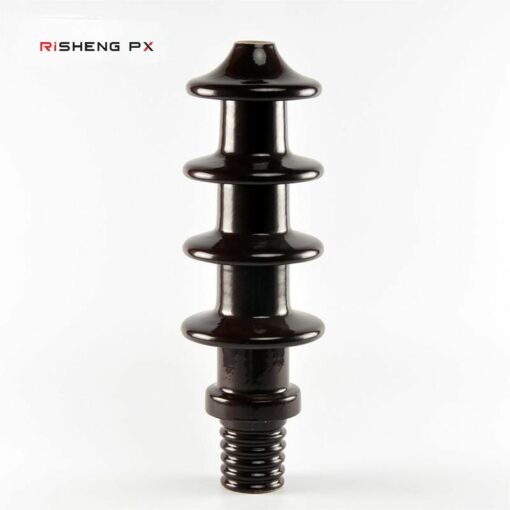

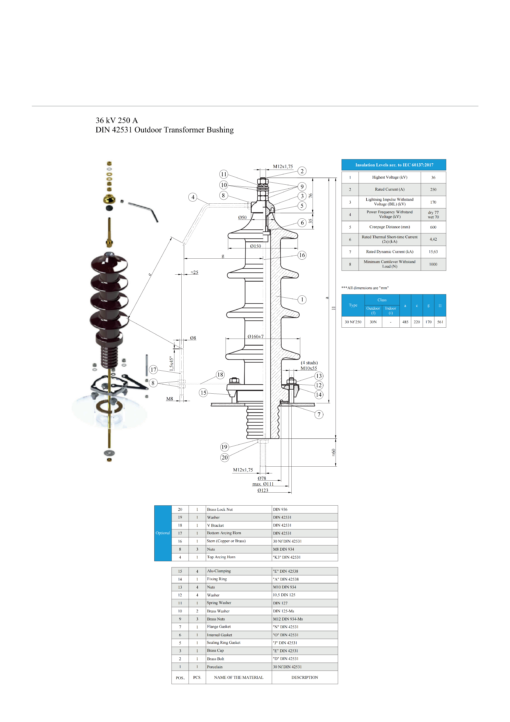

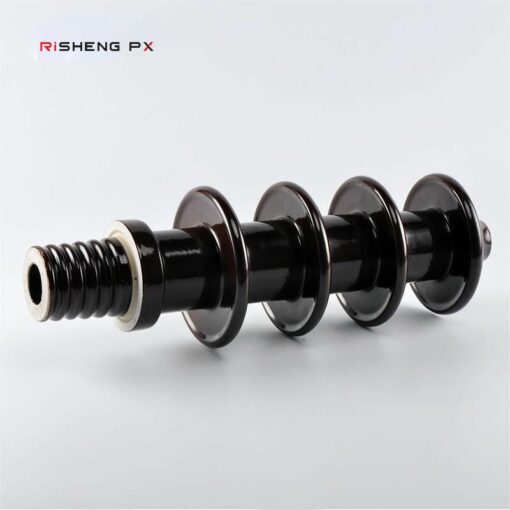

DIN42531 30NF250A Transformer Bushing

DIN42531 30NF250A Transformer Bushing is a common electrical equipment, which plays an important role in high voltage Electric power transmission. This type of bushing is usually used to connect transformers or generators to high-voltage transmission lines, ensuring the normal transmission of electricity. This article will introduce some basic knowledge of high-voltage ceramic transformer generator bushings.

The high-voltage porcelain transformer generator bushing usually consists of a porcelain shell, an iron core, and conductors. The structure and materials of these components have good resistance to high pressure, high temperature, arc, and dirt. Among them, ceramic shells are generally made of materials such as alumina and mica, which have good insulation performance and mechanical strength. The iron core is usually made of silicon steel sheets, which can effectively reduce hysteresis loss and iron loss, and improve energy utilization efficiency. The conductor is made of high-quality electrolytic copper or aluminum alloy with excellent conductivity.

The rated voltage of the high-voltage porcelain transformer generator bushing is usually 24kV or 36kV, and the rated current is determined according to the specific application situation. Before installation, strict inspection and testing are required to ensure compliance with national standards and relevant technical requirements. At the same time, measures such as protective grounding and lightning protection need to be taken to ensure the safe and reliable operation of the entire electrical system.

Overall, DIN42531 30NF250A Transformer Bushing is an essential electrical equipment widely used in power systems. Through reasonable design and manufacturing, the normal transmission of electricity can be effectively guaranteed, and the safety and reliability of the entire electrical system can be improved.
