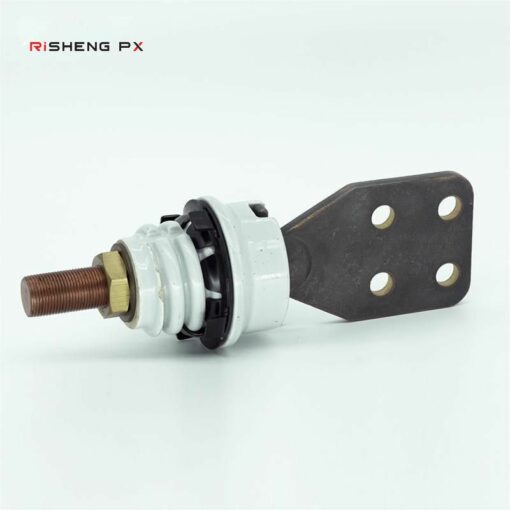

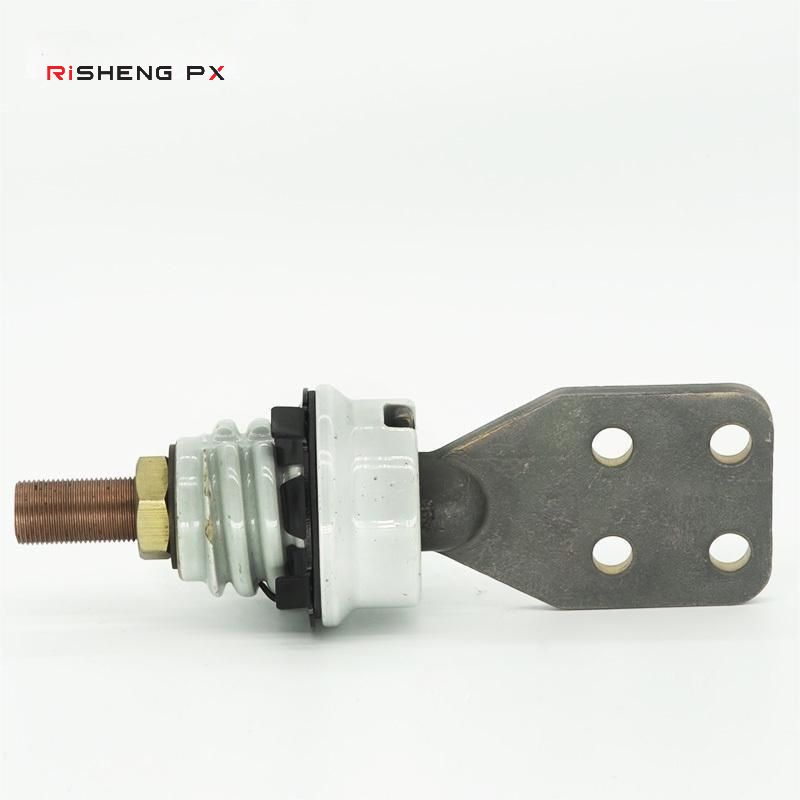

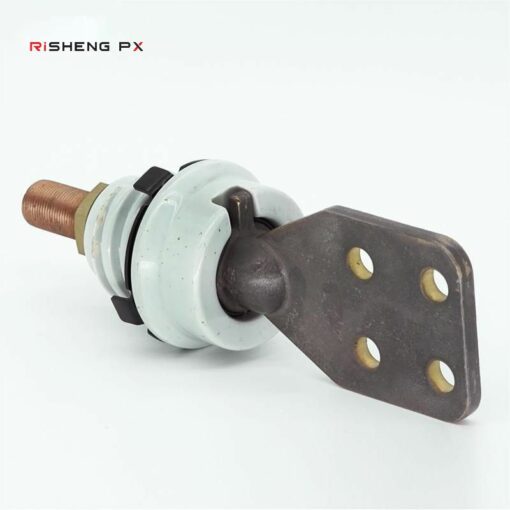

1.2KV800A ANSI Low-Voltage Bushing Ceramic insulators
Send Inquiry

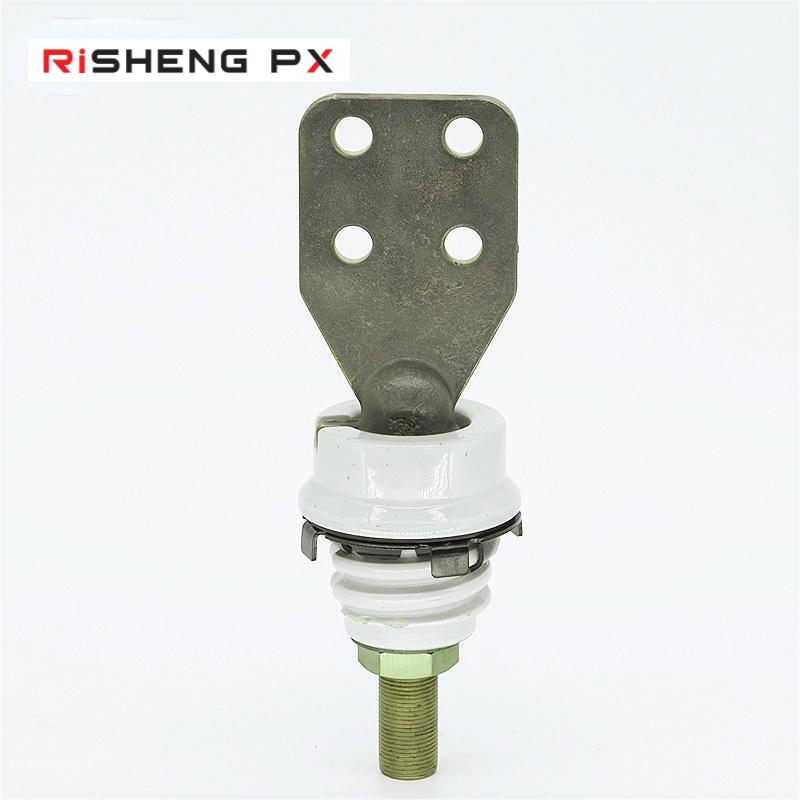

1.2 kV-30kV BIL ANSI Low Voltage Bushing Ceramic isolators

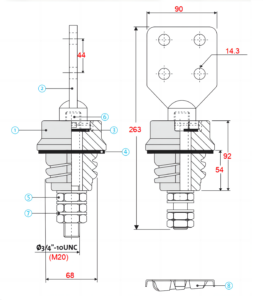

1.2KV800A ANSI Low-Voltage Bushing Ceramic insulators are assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector, and stainless steel lock washer and nut.
1. Material: wet process porcelain insulator
2. Glaze color: light gray
3. Rated voltage: 1.2KV BIL:30KV
4. Standard: ANSI
we offer 1 year quality guarantee period. it is a safe product for end users.
The type of Transformer Bushing is at a very competitive price.
we have cooperated with the most famous transformer factories in European countries due to their reliable quality.
you can easily get your product in a very short time.
by the way, OEM products are specially offered
1.2KV800A ANSI Low-Voltage Bushing Ceramic Insulators Competitive Advantages:
1. good service and quality
2. competitive price
3. large production capacity
4. delivery on time
5. accept customers’ design
| Voltage | Current | Specifications | Connector size & type | Voltage | Current | Specifications | Connector size & type |
| 1.2KV | 125A | 3/8″ – 16 | 5/8″ EYEBOLT | 1.2KV | 630A | Cu 3/4″ | / |
| 1.2KV | 125A | 3/8″ – 16 | 13/16″ EYEBOLT | 1.2KV | 800A | Cu 1″ | / |
| 1.2KV | 125A | 3/8″ – 16 | 20MM EYEBOLT/FLAT | 1.2KV | 800A | 1″ – 14 | 15/16″ EYEBOLT |
| 1.2KV | 125A | 3/8″ – 16 | 13/16″ EYEBOLT/FLAT | 1.2KV | 800A | 1″ – 14 | 1 1/4″ DOUBLE EYEBOLT |
| 1.2KV | 208A | 1/2″ – 13 | 13/16″ DOUBLE EYEBOLT | 1.2KV | 1000A | Cu 1-1/4″ | / |
| 1.2KV | 208A | 1/2″ – 13 | 13/16″ EYEBOLT | 1.2KV | 1250A | Cu 3/8″ | / |
| 1.2KV | 250A | Cu 1/2″ | / | 1.2KV | 1250A | Cu 3/8″ | / |
| 1.2KV | 250A | Cu 1/2″ | / | 1.2KV | 1250A | Cu 7/16″ | / |
| 1.2KV | 250A | Cu 1/2″ | / | 1.2KV | 1250A | Cu 7/16″ | / |
| 1.2KV | 417A | 5/8″ – 11 | 15/16″ EYEBOLT | 1.2KV | 1500A | Cu 1-3/8″ | / |
| 1.2KV | 417A | 5/8″ – 11 | 1 1/4″ DOUBLE EYEBOLT | 1.2KV | 2000A | Cu 1-3/4″ | / |
| 1.2KV | 420A | Cu 5/8″ | 1.2KV | 3150A | Cu 2″ | / | |
| 1.2KV | 600A | 3/4″ – 10 | 15/16″ EYEBOLT | 1.2KV | 4000A | Cu 2″ | / |
| 1.2KV | 600A | 3/4″ – 10 | 1 1/4″ DOUBLE EYEBOLT | 1.2KV | 1250A | 3/8″ – 16 | 13/16″ DOUBLE EYEBOLT |
