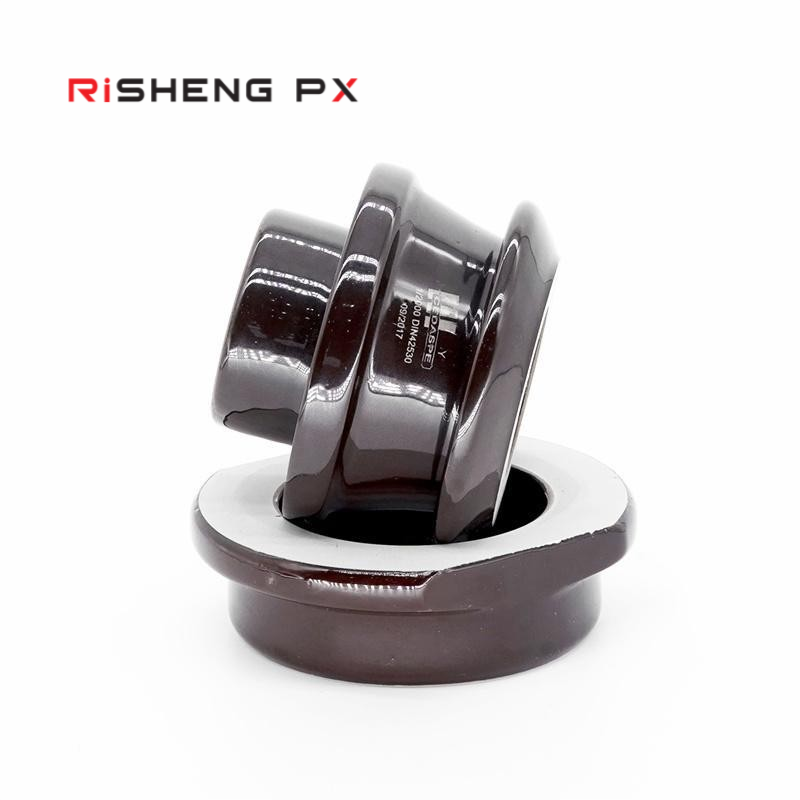

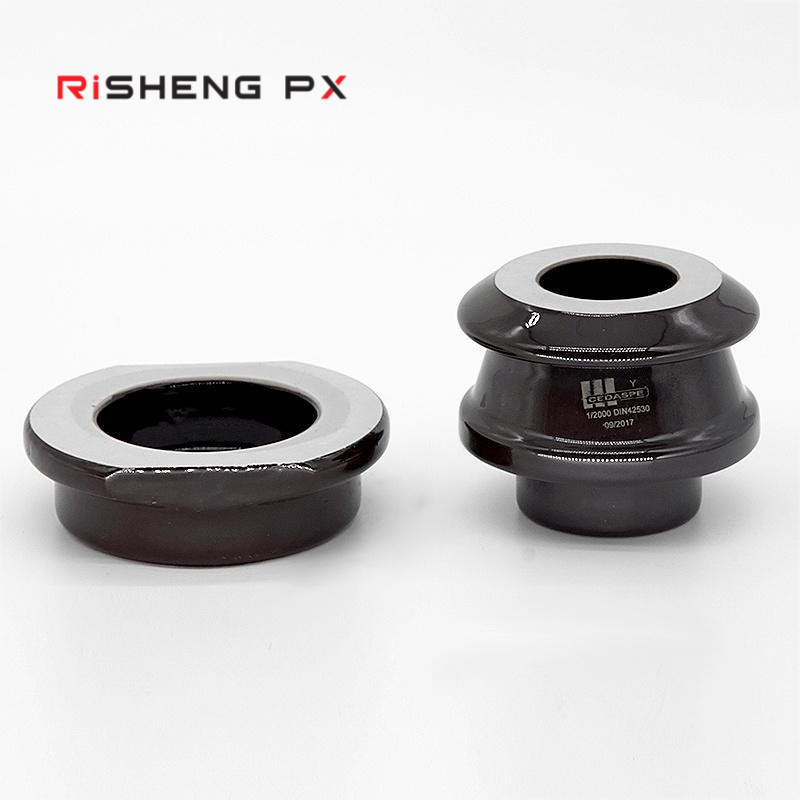

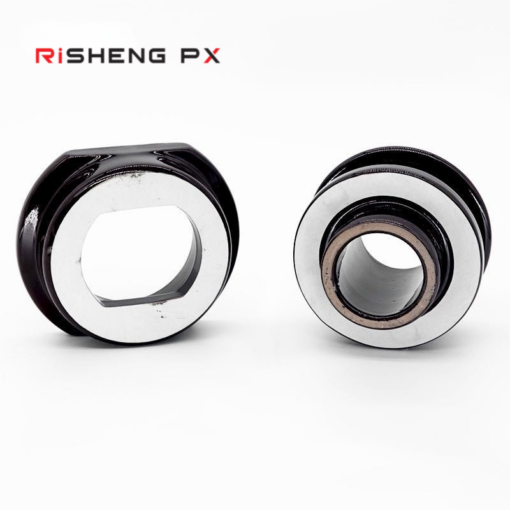

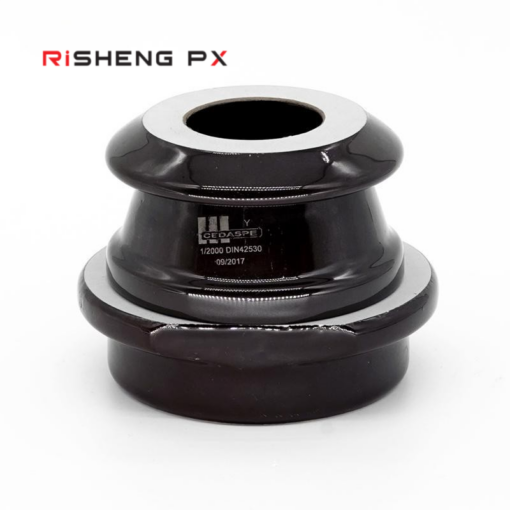

1kV-2000A EN50386 Transformer Bushing

Outdoor 1kV-2000A EN50386 Transformer Bushing – Metal parts, gaskets, porcelain, etc…

We can manufacture bushings acc. to customers’ specifications;
Special length, or connection type.
EN 50386 1/ 250 A – Creepage Distance: 55 mm, Weight: 0.26 kg
EN 50386 1/ 630 A – Creepage Distance: 70 mm, Weight: 0.57 kg
EN 50386 1/ 1000 A – Creepage Distance: 75 mm, Weight: 1.04 kg
EN 50386 1/ 2000 A – Creepage Distance: 75 mm, Weight: 1.29 kg
EN 50386 1/ 3150 A – Creepage Distance: 75 mm, Weight: 2.05 kg
EN 50386 1/ 4000 A – Creepage Distance: 85 mm, Weight: 2.77 kg

1kV-2000A EN50386 Transformer Bushing Applications:

Used for oil-immersed type distribution transformers

Competitive Advantage:

we offer 1 year quality guarantee period. it is a safe product for end users.

The type of Transformer Bushing is at a very competitive price.

we have cooperated with the most famous transformer factories in European countries due to their reliable quality.

because there are several hundreds of different transformer bushing insulator types including DIN, BS, and AU standards, we have supplied most of those types, so we have good experience in manufacturing.

you can easily get your product in a very short time.

by the way, OEM products are specially offered
