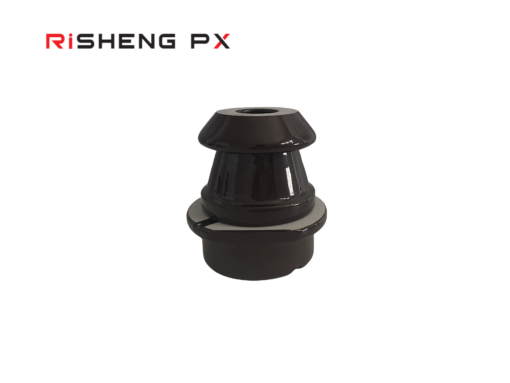

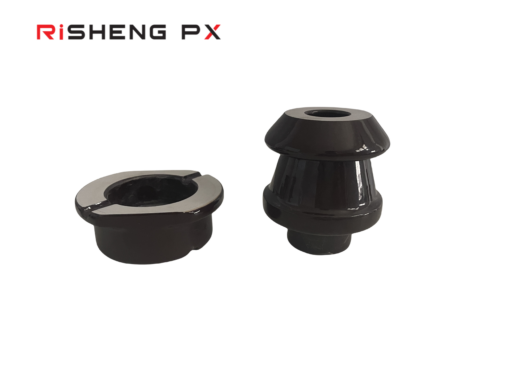

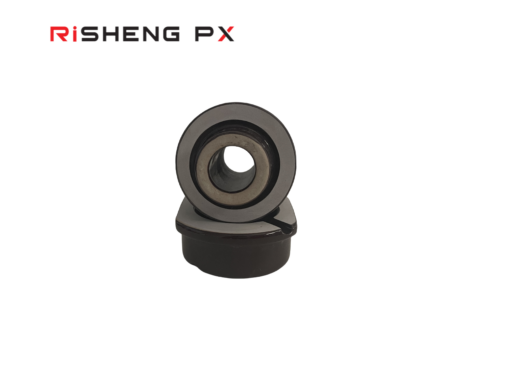

DIN42530 1KV630A Ceramic Insulator
Send Inquiry

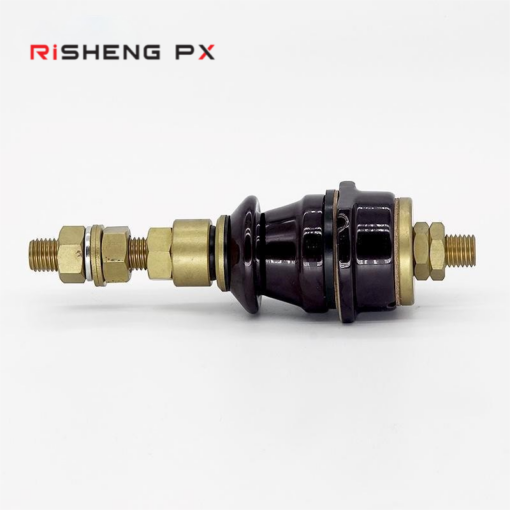

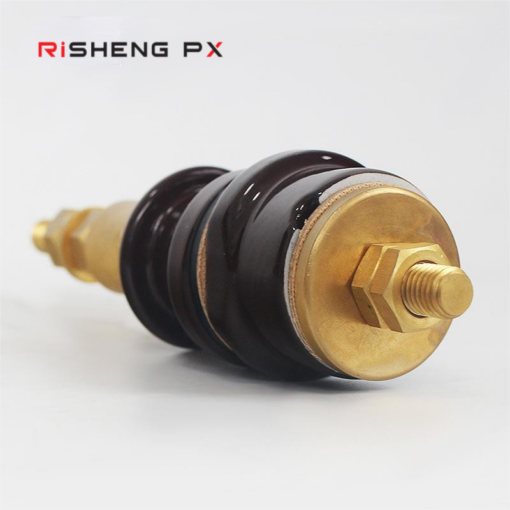

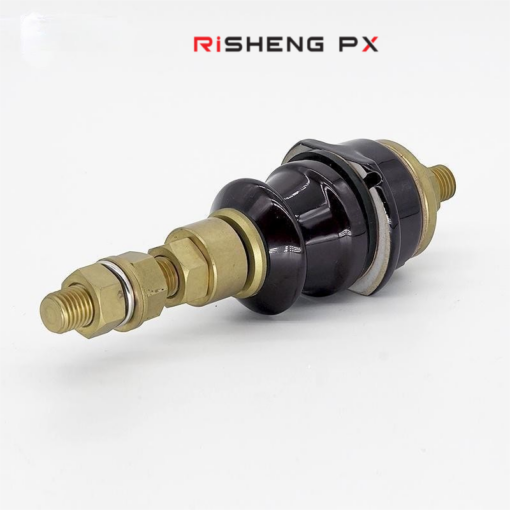

1kv-630A DIN Standard Porcelain Transformer Bushing Insulator
DIN42530 1KV630A Ceramic Insulator
We can manufacture bushings acc. to customers’ specifications;
Special length, or connection type.
EN 42536 1/ 250 A – Creepage Distance: 50 mm, Weight: 0.26 kg
EN 42536 1/ 630 A – Creepage Distance: 75 mm, Weight: 0.57 kg
EN 42536 1/ 1000 A – Creepage Distance: 75 mm, Weight: 1.04 kg
EN 42536 1/ 2000 A – Creepage Distance: 75 mm, Weight: 1.29 kg
EN 42536 1/ 3150 A – Creepage Distance: 75 mm, Weight: 2.05 kg
DIN42530 1KV630A Ceramic Insulator size:
| PART NUMBER | DESCRIPTION | Kv RATING | I RATING | TANK HOLESIZE | BIL | PF DRY | PF WET | CREEPAGE | STEM CONNECT |
| DT 1/250 | DIN 42530 1/250 | 1 | 250 | – | – | – | – | 60 | M12 |
| DT 1/630 | DIN 42530 1/630 | 1 | 630 | 45 | – | – | – | 75 | M20 |
| DT 1/1000 | DIN 42530 1/1000 | 1 | 1000 | 56 | – | – | – | 75 | M30 |
| DT 1/2000 | DIN 42530 1/2000 | 1 | 2000 | 70 | – | – | – | 75 | M42 |
| DT 1/3150 | DIN 42530 1/3150 | 1 | 3150 | 90 | – | – | – | 75 | M48 |
Competitive Advantage:
we offer 1 year quality guarantee period. it is a safe product for end users.
The type of Transformer Bushing is at a very competitive price.
we have cooperated with the most famous transformer factories in European countries due to their reliable quality.
because there are several hundreds of different transformer bushing insulator types including DIN, BS, and AU standards, we have supplied most of those types, so we have good experience in manufacturing.
you can easily get your product in a very short time.
by the way, OEM products are specially offered
