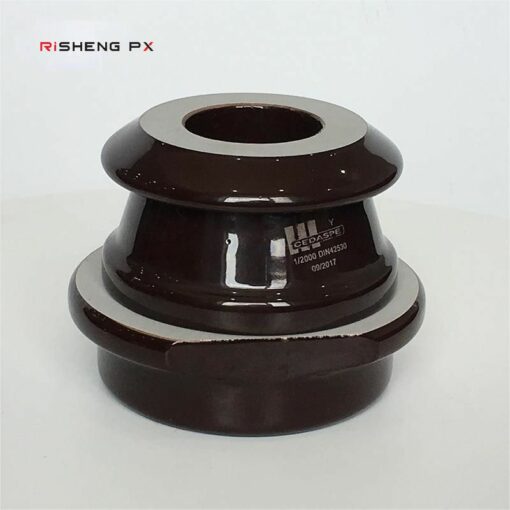

DIN42530 1KV2000A Transformer Bushing Ceramic Insulator

DIN42530 1KV2000A Transformer Bushing

DIN42530 1KV2000A Transformer Bushing Ceramic Insulator Specification

We can manufacture bushings acc. to customers’ specifications;
Special length, or connection type.
DIN 42530 1/ 250 A – Creepage Distance: 50 mm, Weight: 0.26 kg
DIN 42530 1/ 630 A – Creepage Distance: 75 mm, Weight: 0.57 kg
DIN 42530 1/ 1000 A – Creepage Distance: 75 mm, Weight: 1.04 kg
DIN 42530 1/ 2000 A – Creepage Distance: 75 mm, Weight: 1.29 kg
DIN 42530 1/ 3150 A – Creepage Distance: 75 mm, Weight: 2.05 kg

Low-voltage power transformer insulators play a vital role in the power system. To ensure the normal operation of the power system, we must pay enough attention to the low-voltage power transformer insulator, select the appropriate material and type, and carry out regular maintenance and testing. Only in this way can we give full play to the role of low-voltage power transformer insulators and provide a strong guarantee for the development of electric power.

Safety guarantee: The good performance of low-voltage transformer insulators can ensure the normal operation of the transformer and prevent safety accidents caused by winding short circuits and leakage.

Stability guarantee: the quality of the insulator directly affects the stability and life of the transformer. High-quality insulators can ensure the long-term reliable operation of the transformer and reduce the failure rate.
