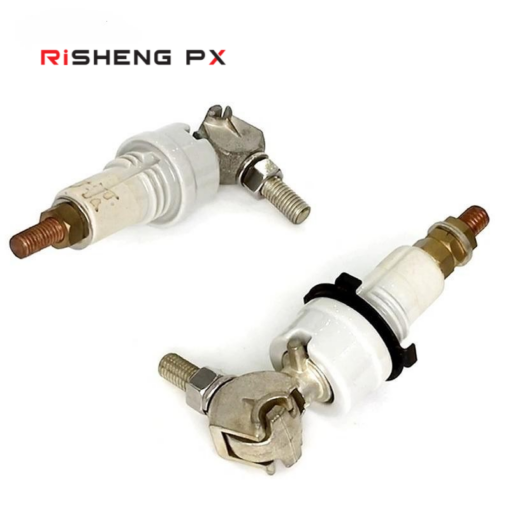

Threaded 1kv LV ANSI transformer bushing Porcelain insulators

1.2kv-250A low voltage ANSI transformer bushing Porcelain insulators

Description

1KV LV ANSI transformer bushing is assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.

1. Material: wet process porcelain insulator

2. Glaze color: light gray

3. Rated voltage: 1KV BIL:30KV

4. Standard: ANSI

Competitive Advantages:

1. good service and quality

2. competitive price

3. large production capacity

4. delivery on time

5. accept customers’ design

If you want to buy transformer bushings with accessories, please email or phone us anytime.

1KV LV ANSI transformer bushing size:

Voltage	Current	Specifications	Connector size & type	Voltage	Current	Specifications	Connector size & type
1.2KV	125A	3/8″ – 16	5/8″ EYEBOLT	1.2KV	630A	Cu 3/4″	/
1.2KV	125A	3/8″ – 16	13/16″ EYEBOLT	1.2KV	800A	Cu 1″	/
1.2KV	125A	3/8″ – 16	20MM EYEBOLT/FLAT	1.2KV	800A	1″ – 14	15/16″ EYEBOLT
1.2KV	125A	3/8″ – 16	13/16″ EYEBOLT/FLAT	1.2KV	800A	1″ – 14	1 1/4″ DOUBLE EYEBOLT
1.2KV	208A	1/2″ – 13	13/16″ DOUBLE EYEBOLT	1.2KV	1000A	Cu 1-1/4″	/
1.2KV	208A	1/2″ – 13	13/16″ EYEBOLT	1.2KV	1250A	Cu 3/8″	/
1.2KV	250A	Cu 1/2″	/	1.2KV	1250A	Cu 3/8″	/
1.2KV	250A	Cu 1/2″	/	1.2KV	1250A	Cu 7/16″	/
1.2KV	250A	Cu 1/2″	/	1.2KV	1250A	Cu 7/16″	/
1.2KV	417A	5/8″ – 11	15/16″ EYEBOLT	1.2KV	1500A	Cu 1-3/8″	/
1.2KV	417A	5/8″ – 11	1 1/4″ DOUBLE EYEBOLT	1.2KV	2000A	Cu 1-3/4″	/
1.2KV	420A	Cu 5/8″		1.2KV	3150A	Cu 2″	/
1.2KV	600A	3/4″ – 10	15/16″ EYEBOLT	1.2KV	4000A	Cu 2″	/
1.2KV	600A	3/4″ – 10	1 1/4″ DOUBLE EYEBOLT	1.2KV	1250A	3/8″ – 16	13/16″ DOUBLE EYEBOLT
